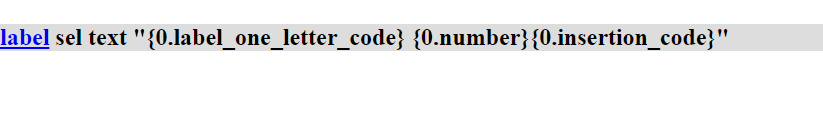

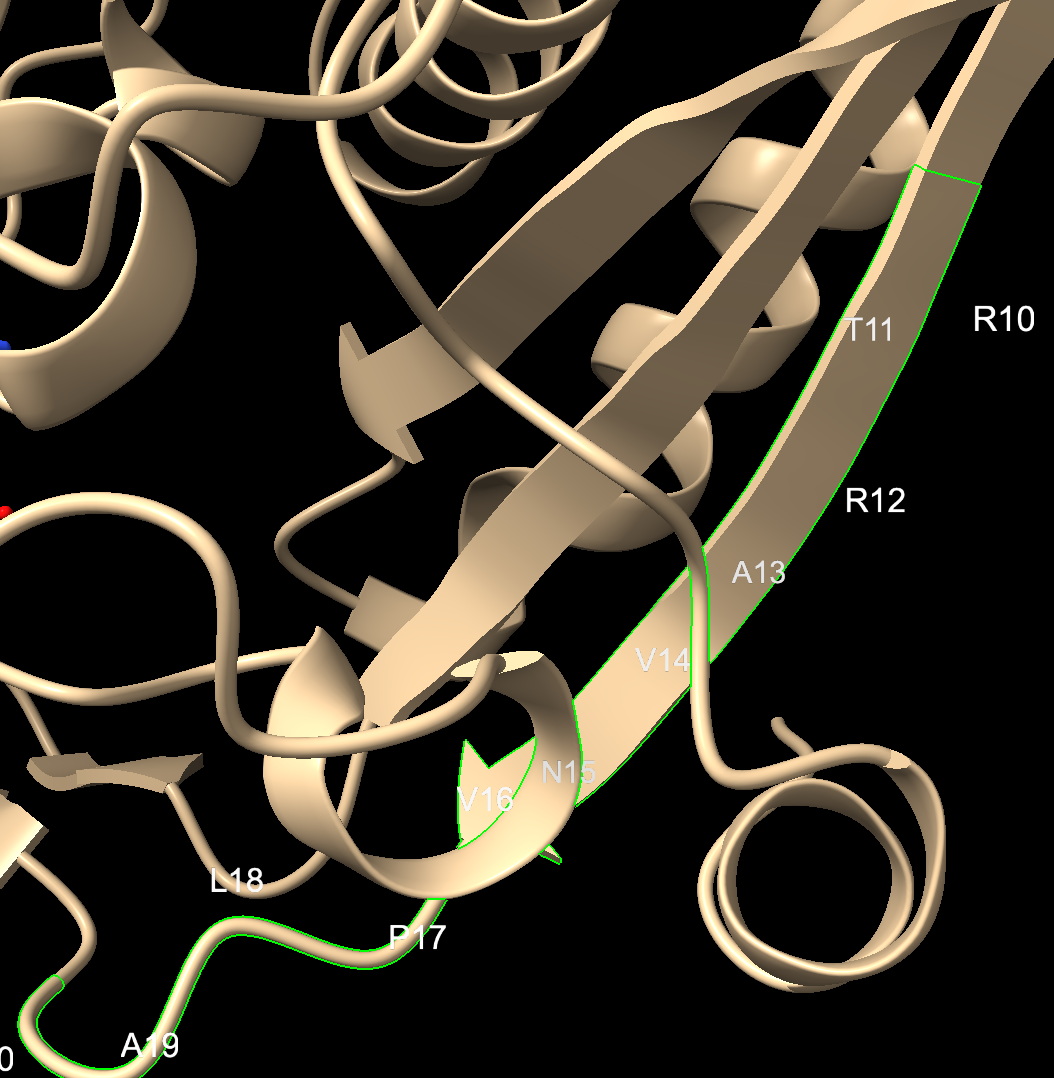

Hi Krish, Your command works fine for me, although my example doesn't have insertion codes. open 2mnr select :10-20 label sel text "{0.label_one_letter_code}{0.number}{0.insertion_code}" see screenshot below. Tested in recent daily build 1.11.dev202508270038 (2025-08-27) but I don't think that matters... I guess also make sure you have amino acid residues selected. I hope this helps, Elaine ----- Elaine C. Meng, Ph.D. UCSF Chimera(X) team Resource for Biocomputing, Visualization, and Informatics Department of Pharmaceutical Chemistry University of California, San Francisco

On Sep 4, 2025, at 12:38 PM, Krishnan Raman via ChimeraX-users <chimerax-users@cgl.ucsf.edu> wrote:

Residue labels not showing up with no error in the log! I am sure iam missing something. Krishnan Raman Executive Director, Structural Biology BioCryst Pharmaceuticals CONFIDENTIALITY NOTICE This email, including any attachments, may contain confidential or legally privileged information that is intended only for the individual or entity to whom it is addressed. If you are not the intended recipient, please be advised that any dissemination, distribution or copying of this email and any attachment is strictly prohibited. If you have received this email in error, please reply to the sender so that BioCryst Pharmaceuticals, Inc. can take corrective measures and then permanently delete this email and any attachment, including any printed copies. Thank you. _______________________________________________ ChimeraX-users mailing list -- chimerax-users@cgl.ucsf.edu To unsubscribe send an email to chimerax-users-leave@cgl.ucsf.edu Archives: https://mail.cgl.ucsf.edu/mailman/archives/list/chimerax-users@cgl.ucsf.edu/
